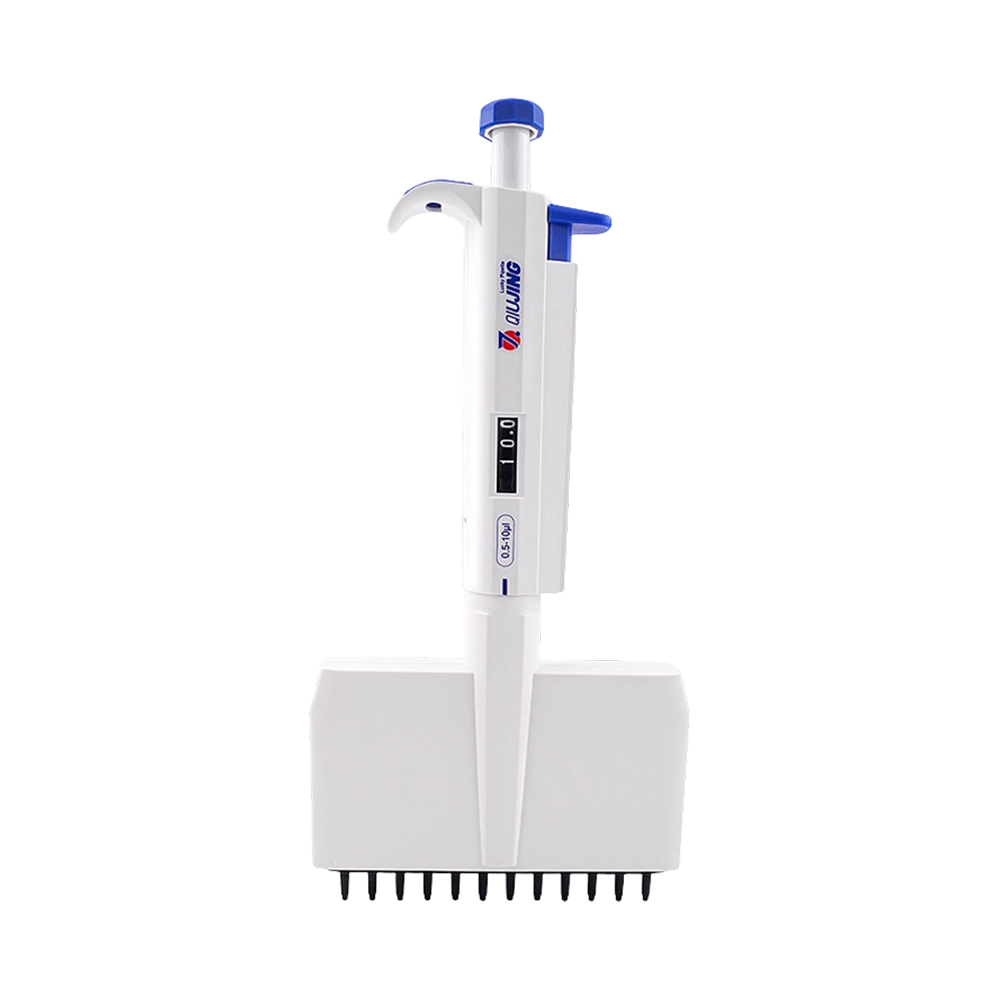

Qiujing Lucky Series 12-Channel Micropipette

The Qiujing LUCKY Series 12-Channel Micropipette is developed for laboratory workflows that involve repeated multi-sample liquid transfer. With 12 independently aligned pipetting channels, it allows users to handle multiple wells or samples in one operation, helping simplify repetitive procedures and improve overall laboratory productivity.

Highlights of the 12-Channel Design
12 synchronized channels for simultaneous liquid aspiration and dispensing
Suitable for transferring samples across multiple wells in microplates
Helps reduce repetitive pipetting steps and improve laboratory workflow efficiency
Ergonomic construction designed for comfortable daily operation
Clear volume scale for convenient volume identification

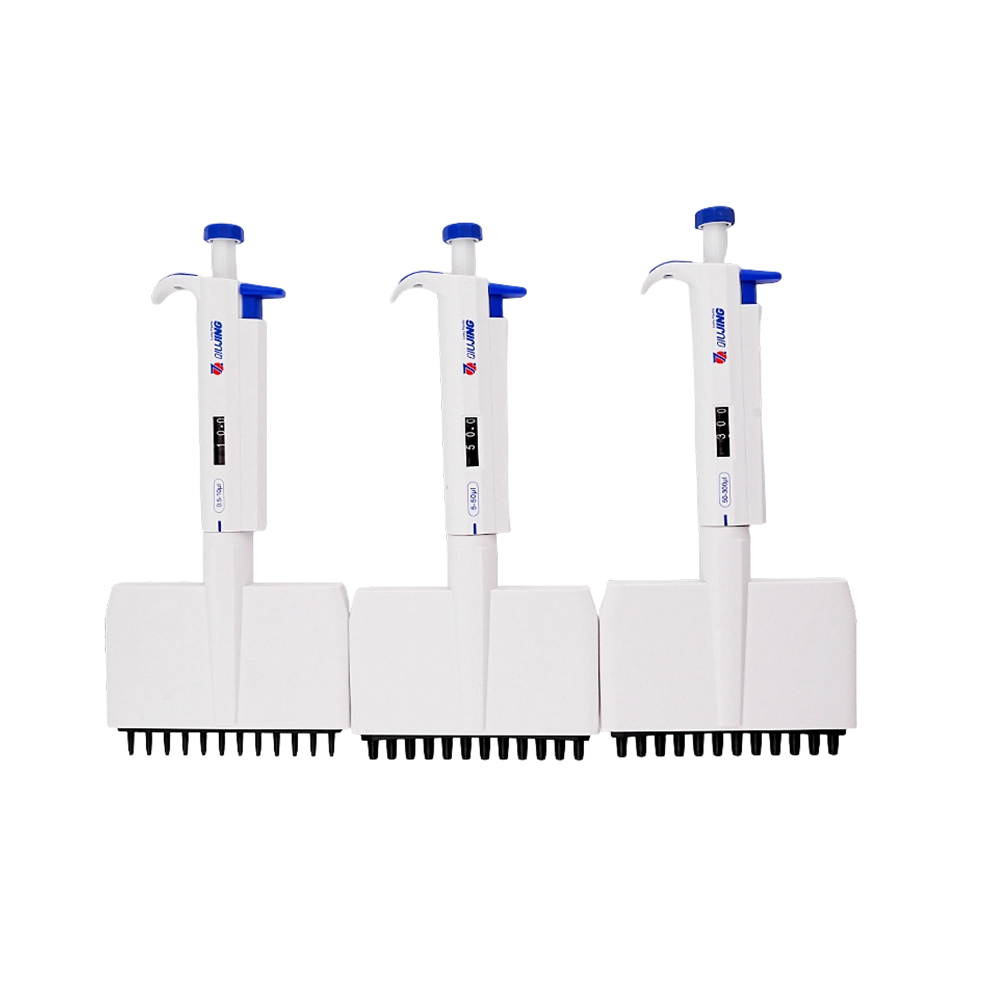

Available with different volume ranges to accommodate various liquid handling requirements
Durable materials provide resistance to impact, UV exposure, and chemical corrosion
Detachable nozzle assembly facilitates cleaning and routine maintenance
Components support high-temperature and high-pressure sterilization
Calibration capability helps maintain dependable pipetting performance

Pipette operation
A. Set the range
The display window of the handle clearly shows the amount of pipet pipetting. The amount of pipetting is set by rotating the operation
button clockwise or counterclockwise (for adjustable pipettes only).
When setting the range, please note: rotate to the desired range; Numbers are clearly displayed in the display window; The range set is
within the range of the pipettor. Don't screw the button out of the range,
Otherwise, it will jam the mechanism and damage the pipettor.
B. Pipetting technique
Forward pipetting:
Ensure that the pipette tip is tightly connected to the tip cone. Move the button slowly and evenly for best pipetting, especially when
transferring viscous liquids.
The pipettor remains vertical during suction. At the same time, it should be ensured that the specimen liquid and solution tank are clean,
and the temperature of the pipettor, suction tip, and liquid is the same.
1) Press the operation button to the first stop point.
2) Subside the suction head into the liquid level for 2-3 mm, and gently release the operation button (return to the origin). Carefully lift
the suction tip off the liquid level and dock it on the container wall to remove excess liquid.
3) Press the button to the first stop point, and the liquid will be discharged. Pause for a moment and continue to press the operation
button to the second stop point (i.e. blow out). This step will empty the suction head and ensure accurate fluid transfer.
4) Release the button and return to the origin.
3. Store

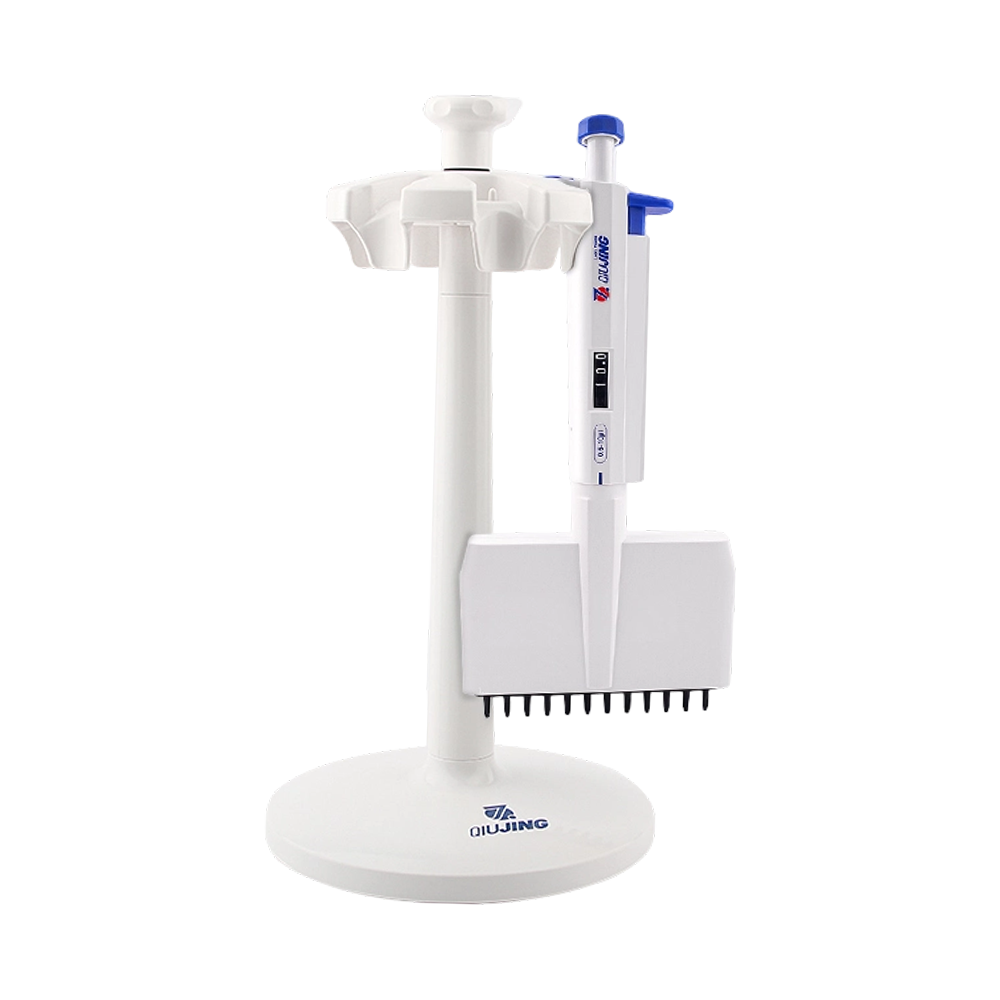

If the pipet is not in use, it is recommended to hang it vertically on the pipet holder

12-channel parameter list
Product number	Speciﬁcation	Increment	Test volume(μL)	Maximum allowable error Inaccuracy(%)	Maximum allowable error Imprecision(%)
23011200010	0.5-10μL	0.1μL	10μL	±1.50%	1.50%
			5μL	±2.50%	2.50%
			1μL	±4.00%	4.00%
23011200050	5-50μL	0.5μL	50μL	±1.00%	0.50%
			25μL	±1.50%	1.00%
			5μL	±3.00%	2.00%
23011200300	50-300μL	5μL	300μL	±0.70%	0.25%
			150μL	±1.00%	0.50%
			50μL	±1.50%	0.80%
