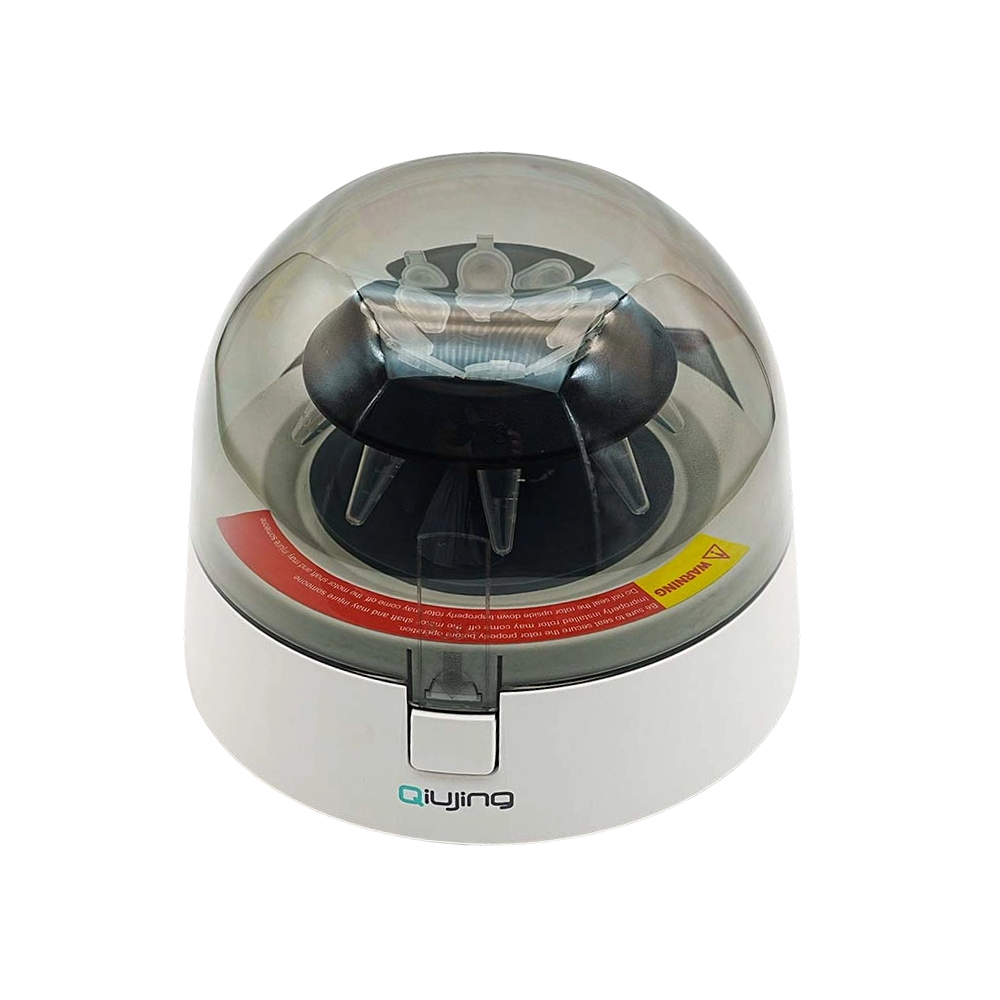

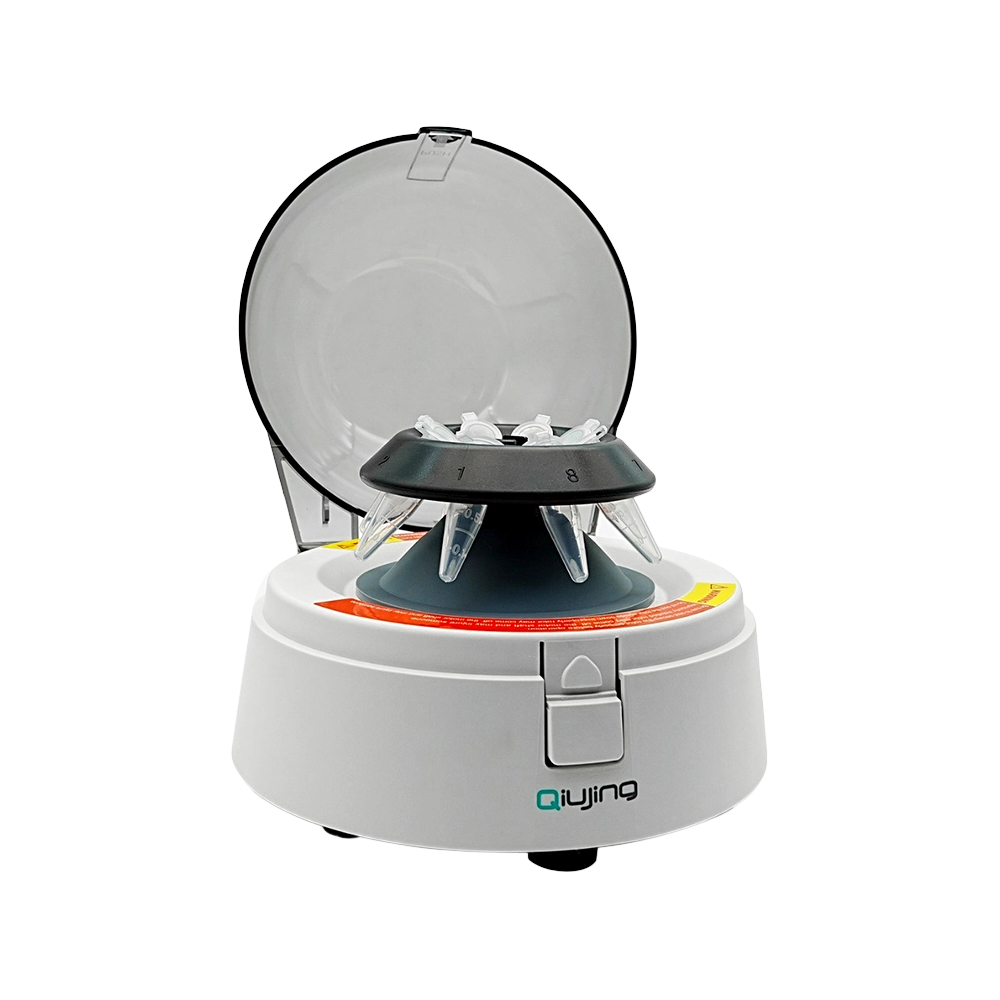

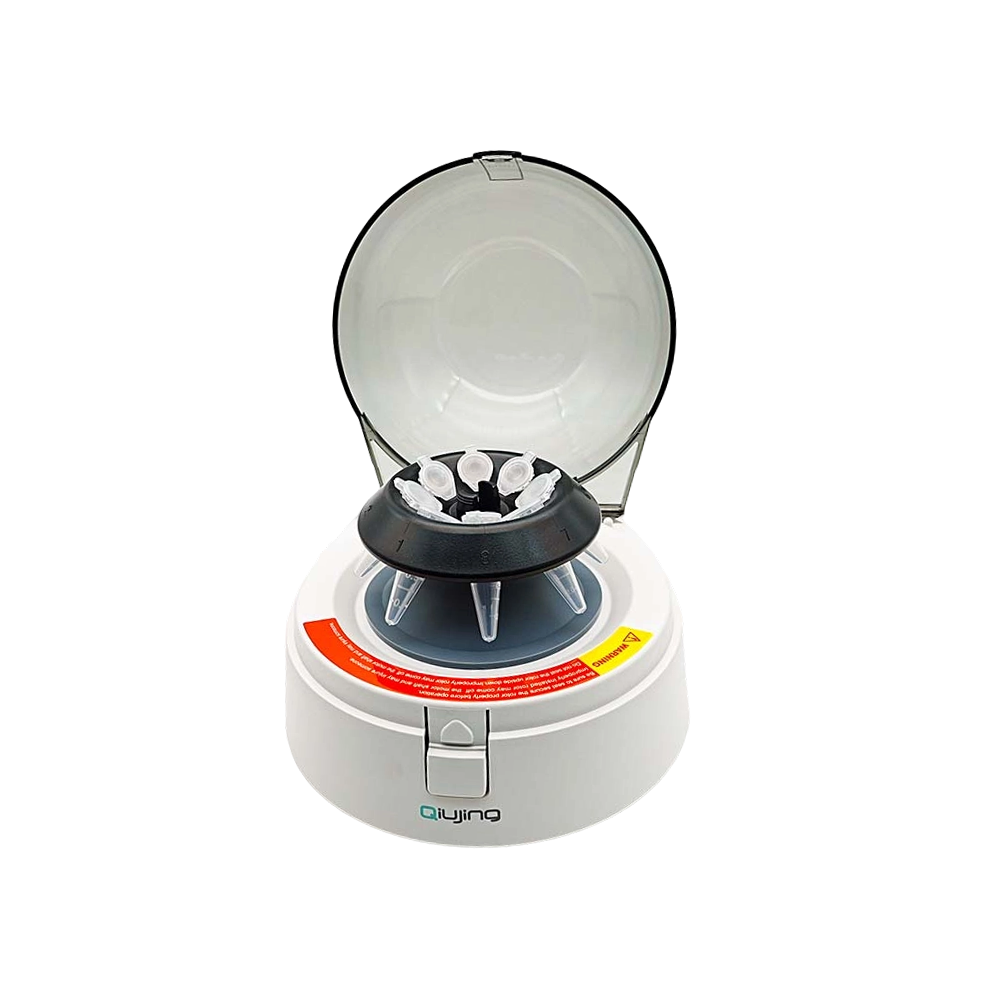

Qiujing Whirlwind Series Mini Centrifuge(W40, W70, W100)

Using an advanced and reliable PI high-frequency, full-range, wide-power-supply control scheme, which complies with AC100-240V/50/60Hz input power supply, it can more accurately control voltage, current, speed, and relative centrifugal force to ensure that its constant speed will not change with voltage or load changes; Unique rotor head snap on installation design, without any tools can easily change the swivel, Let the experimenter replace the rotor more convenient and fast; High-strength main machine and rotor material, can resist various chemical corrosion; the rotor has high temperature resistance and disinfection function; With an efficient DC permanent magnet motor, rubber material can shock absorb which contir stable operation. The rotation space is 360° with no resistance, small temperature rise, super quiet, machine noise angle, small wind < 42 dB; Faster acceleration/deceleration rate, helps complete the experiment in a shorter time, acceleration within 5 seconds to achieve rated speed above 95%; Press the door opening button for free parking (≤5 seconds);

PREV：Qiujing Cyclone Series Mini Centrifuge(C70, C120)NEXT：No next article

Main Unit Parameters	W40	W70	W100
Product Model	W40	W70	W100
Input Power Supply	AC100-240V/50/60Hz	AC100-240V/50/60Hz	AC100-240V/50/60Hz
Input Power Supply	12W	18W	25W
Motor	DC24V / DC Permanent Magnet Motor	DC24V / DC Permanent Magnet Motor	DC24V / DC Permanent Magnet Motor
Control Mode	Direct drive power supply for PI	Direct drive power supply for PI	Direct drive power supply for PI
Power Fuse	PPTC / Self-recovering Fuse / No Replacement Required	PPTC / Self-recovering Fuse / No Replacement Required	PPTC / Self-recovering Fuse / No Replacement Required
Rotor Capacity	"Angular head: 2/1.5/0.5/0.2 mL X 8 wells,PCR pipette head: 0.2 mL X 8 wells X 4 rows Composite head: 1.5 mL X 6 wells + 0.5 mL X 6 wells L + 0.2 mL X 8 wells X 2 rows"	"Angular head: 2/1.5/0.5/0.2 mL X 8 wells,PCR pipette head: 0.2 mL X 8 wells X 4 rows Composite head: 1.5 mL X 6 wells + 0.5 mL X 6 wells L + 0.2 mL X 8 wells X 2 rows"	Angular head: 2/1.5/0.5/0.2 ml × 8 wells PCR pipette head: 0.2 ml × 8 wells × 4 rows Composite head: 1.5 ml × 6 wells + 0.5 ml
Maximum Rotational Speed	4000r/min.±3%	7000r/min. ±3%	10000r/min. ±3%
Maximum Relative Centrifugal Force	998×g	2196×g	5610×g
Dimensions: L×W×H	156mm×158mm×130mm	156mm×158mm×130mm	156mm×158mm×130mm
Weight	1.05kg	1.05kg	1.05kg
Noise at Maximum Speed (Approx.)	≤42dB(A)	≤45dB(A)	≤48dB(A)
Fastest Acceleration Time	≤5s	≤5s	≤5s
Fastest Deceleration Time	≤5s	≤5s	≤5s
Ingress Protection Rating	IP21	IP21	IP21
Permissible Ambient Temperature	+5-40℃/80%	+5-40℃/80%	+5-40℃/80%
Interference Suppression Standard	EN61010-1,EN61010-2,EN 61326-1,EN61010 3-2/A2	EN61010-1,EN61010-2,EN 61326-1,EN61010 3-2/A2	EN61010-1,EN61010-2,EN 61326-1,EN61010 3-2/A2


Item	W40/W70/W100‑A‑1	W40/W70/W100‑A‑2	W40/W70/W100‑A‑3
Angle type turning head model	W40/W70/W100‑A‑1	W40/W70/W100‑A‑2	W40/W70/W100‑A‑3
Single tube capacity	1.5/2ml	0.2ml ×8 Wells	1.5ml/0.5ml/0.2×8 well
Total centrifugal capacity	1.5/2ml ×8hole	0.2ml ×8 Wells ×4 rows	1.5ml ×6 Wells +0.5ml×6 Wells +0.2ml×2 rows
Maximum rotational speed	4000/7000/10000rpm	4000/7000/10000rpm	4000/7000/10000rpm
Maximum relative centrifugal force	998/2196/5160 ×g	536/1643/3354 ×g	912/2793/5590 ×g
Type of tube	PP round/cone bottom with cap	PP cone bottom with a cap	PP cone bottom with a cap
Type of adapter	W40/W70/W100‑AP‑1	W40/W70/W100‑AP‑2	—
Capacity of adapter	0.5ml	0.2ml	—

Fit the turning head	W40/W70/W100‑A‑1	W40/W70/W100‑A‑1	—
Type of tube	PP cone bottom with a cap	PP cone bottom with a cap	—
