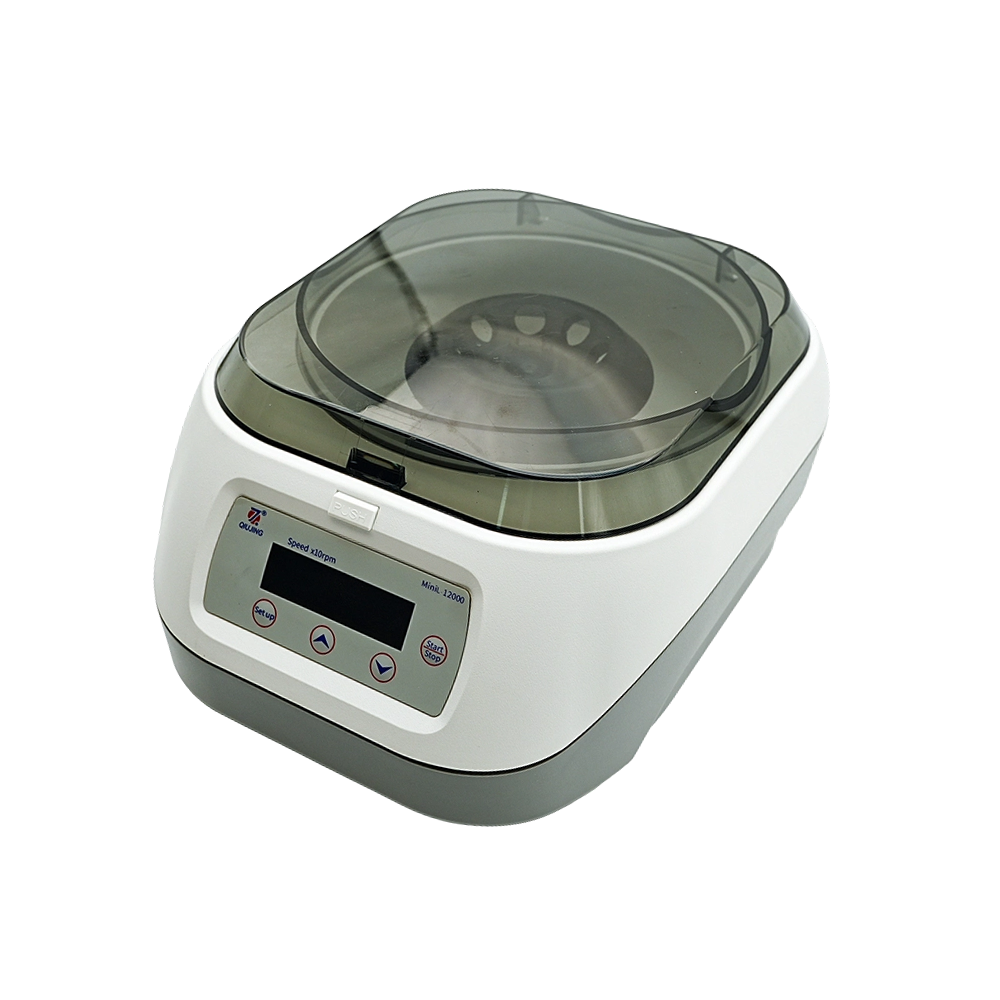

Qiujing Cyclone Series Mini Centrifuge(C70, C120)

Adopts an advanced and reliable PI high-frequency wide-range power control solution, compatible with power grids worldwide. Through 16-bit MCU PWM speed regulation, it enables more precise control of voltage, current, speed, and effective centrifugation time, ensuring extended motor life and elimination of electromagnetic noise even under harsh operating conditions.

Reliable and durable DC permanent magnet motor with a wider speed range of 1000–7000 rpm or 1000–12000 rpm, accuracy of ±5%, speed step increment of 500 rpm, and effective centrifugation time range of 1-99 minutes or 1-59 seconds.

Faster acceleration/deceleration rates to complete experiments in a shorter time.
High-strength main unit and rotor materials resist various chemical corrosions, and the rotor features high-temperature sterilization capability.

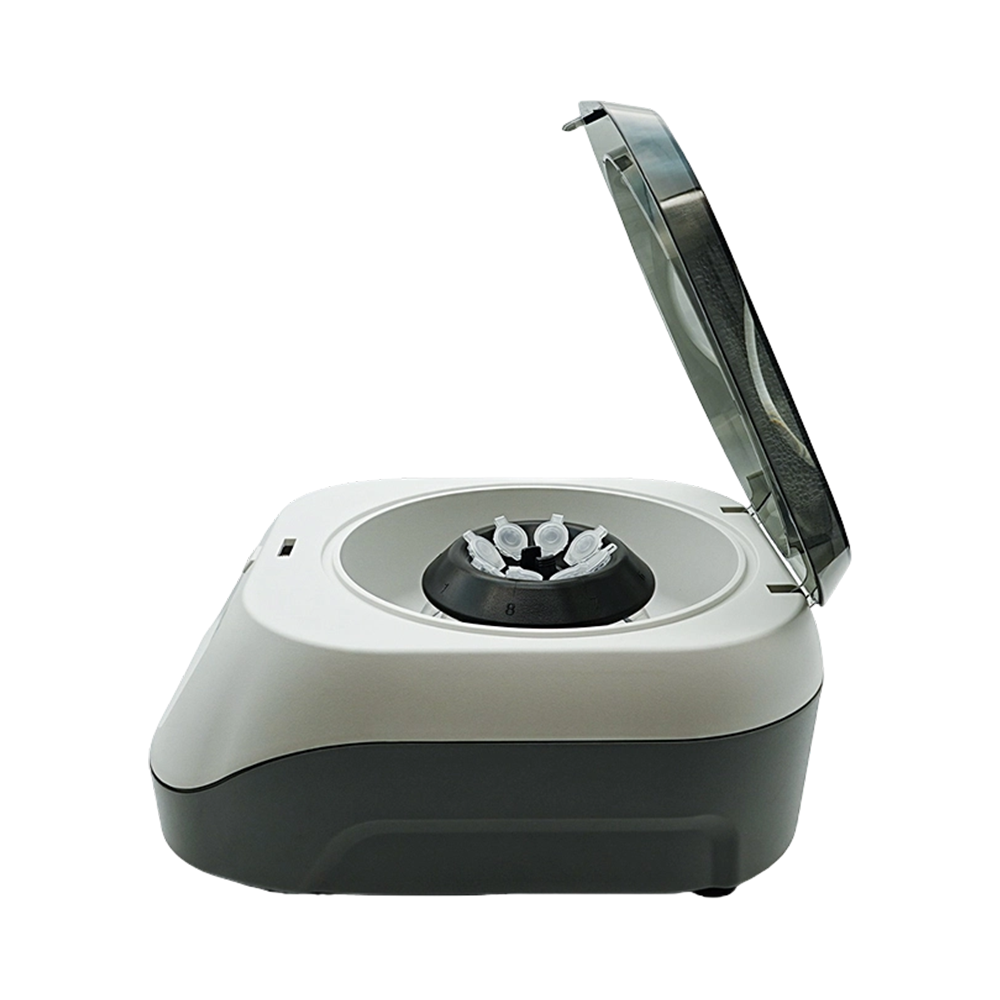

Unique snap-in rotor mounting design allows easy rotor replacement without any tools, making it faster and more convenient for lab personnel to change rotors.
Innovative combined tube rotor accommodates multiple tube types, meeting basic experimental needs without rotor replacement.

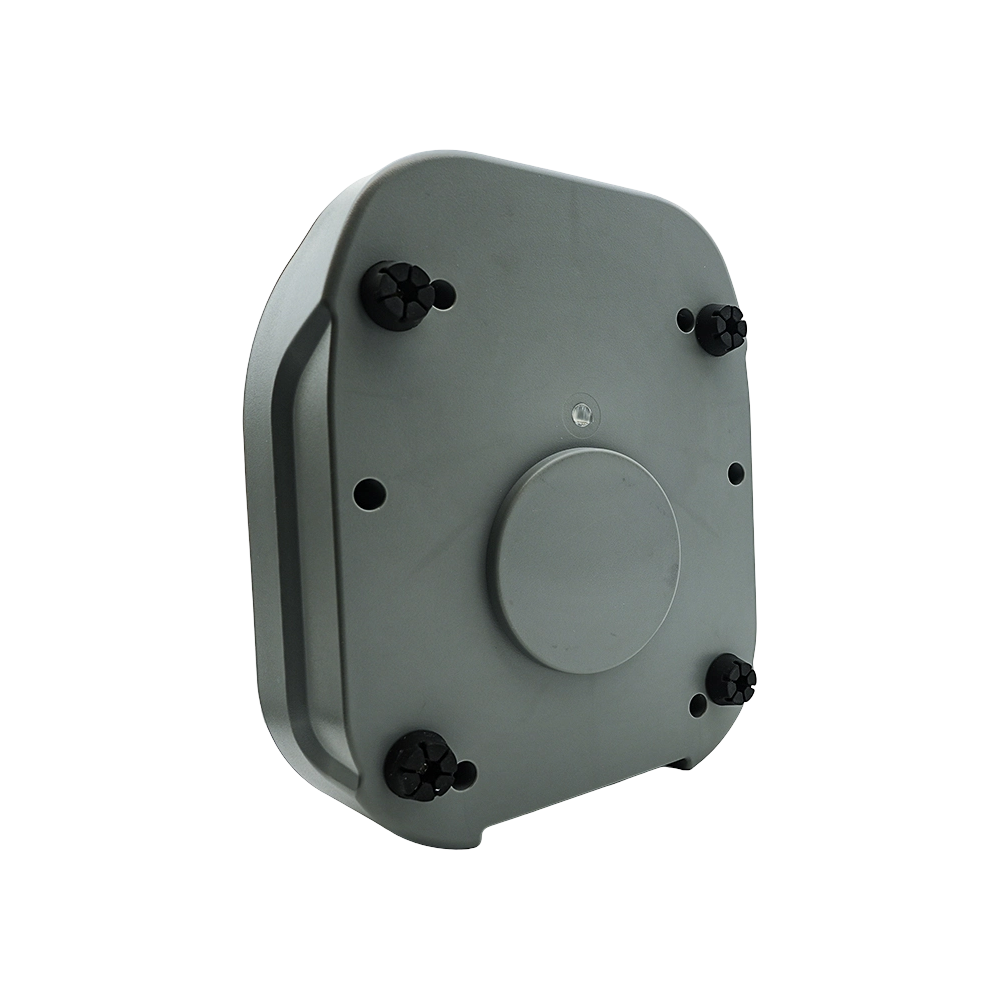

Rubber damping for smoother operation; the rotating chamber has a 360° arc shape with no sharp corners, low air resistance, low temperature rise, and ultra-low noise, with overall machine noise <60dB.
Lid protection ensures safe operation; when the run finishes, an error occurs, or imbalance is detected, an audible signal is given, the operation stops, and the LCD displays a result code.

PREV：Qiujing Centrifuge L50 NEXT：Qiujing Whirlwind Series Mini Centrifuge(W40, W70, W100)

Item	C70	C120
Model number	C70	C120
Input power supply	AC100‑240V/50/60Hz	AC100‑240V/50/60Hz
Power supply fuse	PPTC/ self‑healing fuse/No replacement required	PPTC/ self‑healing fuse/No replacement required
Input power	20W	30W
Mode of control	ST16 bit MCU/PWM/ speed control	ST16 bit MCU/PWM/ speed control
Display mode	White characters on black background	White characters on black background
motor	DC24V/Dc permanent magnet motor	DC24V/Dc permanent magnet motor
Effective centrifuge time	1‑99min.1‑59sec.	1‑99min.1‑59sec.
Speed of rotation	1000‑7000rpm±5%	1000‑12000rpm±5%
Speed step increase	500rpm	500rpm
Maximum relative centrifugal force	3286×g	9650×g
Size	192mm ×222mm×115mm	192mm ×222mm×115mm
Weight	1.85Kg	1.85Kg
Noise at maximum speed(≈)	≤58dB(A)	≤60dB(A)
Fastest acceleration time [sec]	≤8s	≤12s
Fastest deceleration time [sec]	≤10s	≤10s
Degree of protection	IP21	IP21
Ambient temperature/relative humidity allowed	+5‑40℃/80%	+5‑40℃/80%
Interference suppression standard	EN61010‑1,EN61010‑2,EN 61326‑1,EN 61010‑3‑2/A2	EN61010‑1,EN61010‑2,EN 61326‑1,EN 61010‑3‑2/A2



Angle type rotary head model	C70/C120‑A‑1	C70/C120‑A‑2	C70/C120‑A‑3	C70/C120‑A‑4	MiniL‑A‑5 capillary blood volume meter head
Single pipe capacity	1.5/2ml/0.2ml × 8‑well	0.2ml ×12‑well	5ml	5/1.8/1.1ml	20ul
Total centrifugal capacity	1.5/2ml ×12‑well +0.2ml ×8×4	0.2ml ×12 Wells ×4 rows	5ml ×4‑hole	5/1.8/1.1ml ×4‑hole	20ul ×4‑hole
Maximum rotational speed	7000/12000rpm	7000/12000rpm	7000/12000rpm	7000/12000rpm	12000rpm
Maximum relative centrifugal force	3232/9500 ×g	2210/5960 ×g	3286/9650 ×g	3180 ×g	8371 ×g
Type of tube	PP round/cone bottom with cap	PP cone bottom with a cap	PP cone bottom with a cap	PP cone bottom with a cap	Capillary reading card
Type of adapter	C70/C120‑AP‑1	C70/C120‑AP‑2	C70/C120‑AP‑3	—	—
Adapter capacity	0.5ml	0.2ml	1.1/1.8ml	—	—
Fit the head	C70/C120‑A‑1	C70/C120‑A‑1	C70/C120‑A‑4	—	—
Type of tube	PP cone bottom with a cap	PP cone bottom with a cap	PP cone bottom with a cap	—	—
