Qiujing Pure Series Metal Bath Cooling Plate (With Cooling) L-100

It is an economical dry thermoSTAT controlled by a microcomputer.
It uses high purity aluminum material as heat conduction medium to replace the traditional water bath device. It has the characteristics of exquisite appearance, convenient use, high precision and small volume. It can be widely used in sample preservation and reaction, predenaturation of DNA amplification and electrophoresis, serum coagulation, etc.
Dynamic fault detection and buzzer alarm function, temperature deviation calibration function, real-time temperature and countdown display, beautiful appearance, blue liquid crystal display real-time parameter information;Multiple security protection to ensure the stability of long-term operation and the safety under unattended conditions, in line with CE standards;Support module classification and custom calibration function, built-in over temperature protection device;Instant temperature and countdown display;

Contact us Ask A Question
PREV：Qiujing Pure Series Constant Temperature Heating/Cooling Mixer MIX-100/MIX-100LNEXT：Qiujing Pure Series Dry Bath Unit H-100
  • Qiujing Pure Series Metal Bath Cooling Plate (With Cooling) L-100
  • Qiujing Pure Series Metal Bath Cooling Plate (With Cooling) L-100
  • Qiujing Pure Series Metal Bath Cooling Plate (With Cooling) L-100
  • Qiujing Pure Series Metal Bath Cooling Plate (With Cooling) L-100
Item Specification
Model L‑100
Temperature Setting Range -10℃~100℃
Temperature Control Range 30℃ below ambient to 100℃
Time Setting 1min ~ 99h59min / ∞
Temperature Control Accuracy ≤±0.3℃*
Display Precision 0.1℃
Temperature Uniformity ≤±0.3℃*
Heating‑up Time ≤12 mins (25℃ to 100℃)*
Cooling Time 1 ≤10 mins (100℃ to 25℃)*
Cooling Time 2 ≤25 mins (Ambient to 30℃ below ambient)*
Multi‑point Operation Supported (Max. 5 points)
Multi‑point Cycle Operation Supported (Max. 99 cycles)
Automatic Preheating Supported
Auto‑run at Power‑on Supported
Auto Recovery after Power Failure Supported
Sample Capacity See Module Selection Table
Input Power 150W
Voltage AC220V/50‑60HZ
Fuse 250V 3A Φ5×20
Overall Dimensions 260×195×150 mm
Weight 4.5Kg

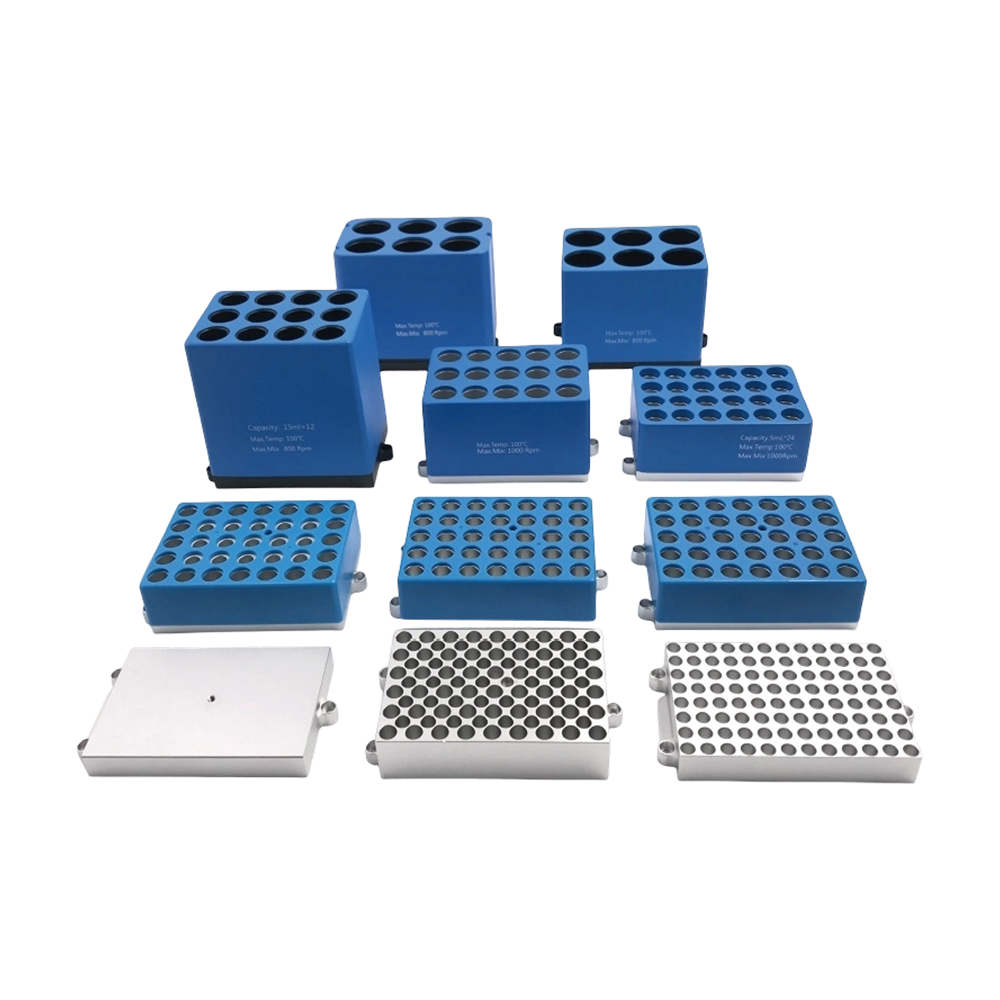

Model of module Number of tubes and pore size Standard/optional accessories
L30 96 × 0.2 mL (Standard Version) Standard
L31 54 × 0.5 mL (Centrifuge Tubes) Optional
L32 35 × 1.5 mL (Centrifuge Tubes) Optional
L33 35 × 2.0 mL (Centrifuge Tubes) Optional
L34 15 × 0.5 mL + 20 × 1.5 mL (Centrifuge Tubes) Optional
L35 96 × 0.2 mL (Microplate) Optional
L36 24 × 5 mL (Centrifuge Tubes) Optional
L37 15 × 10 mL (Centrifuge Tubes) Optional
L38 12 × 15 mL (Centrifuge Tubes) Optional
L39 6 × 50 mL (50 mL Round‑bottom Centrifuge Tubes) Optional
L39‑S 6 × 50 mL (50 mL Conical‑bottom Centrifuge Tubes) Optional
