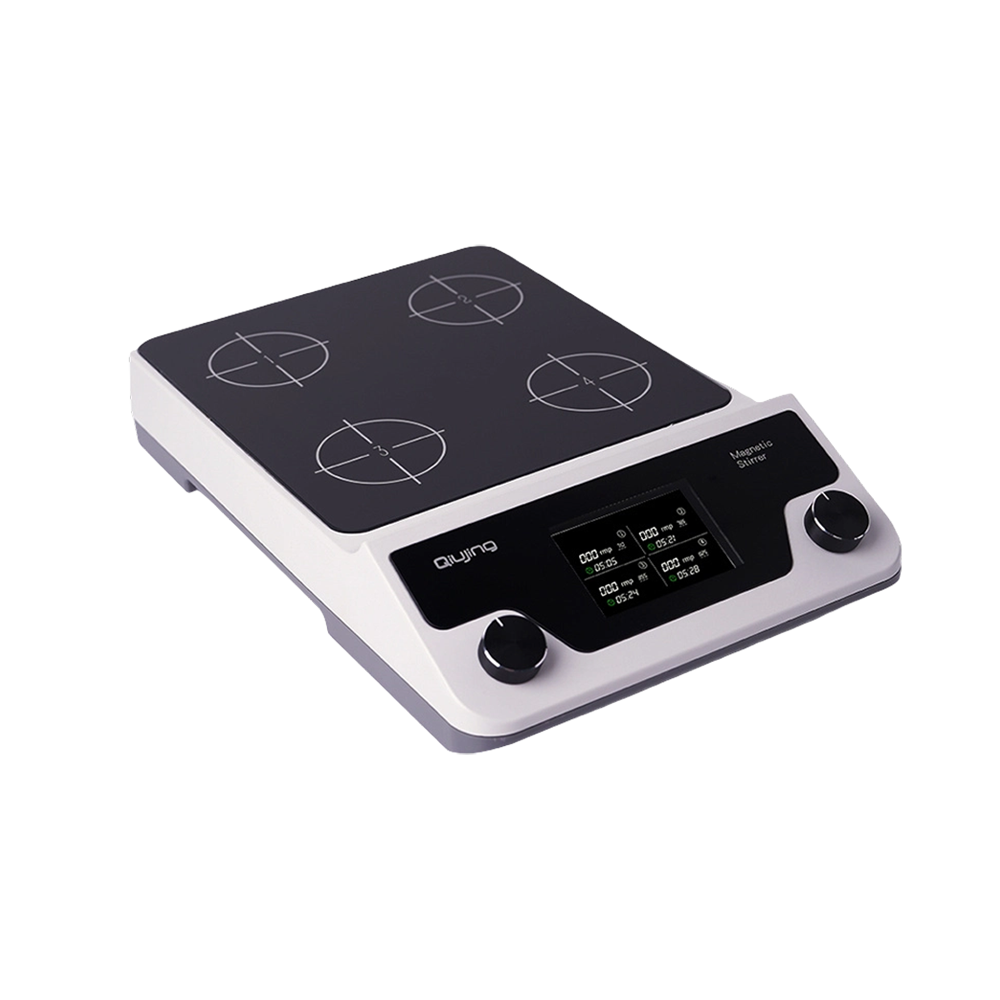

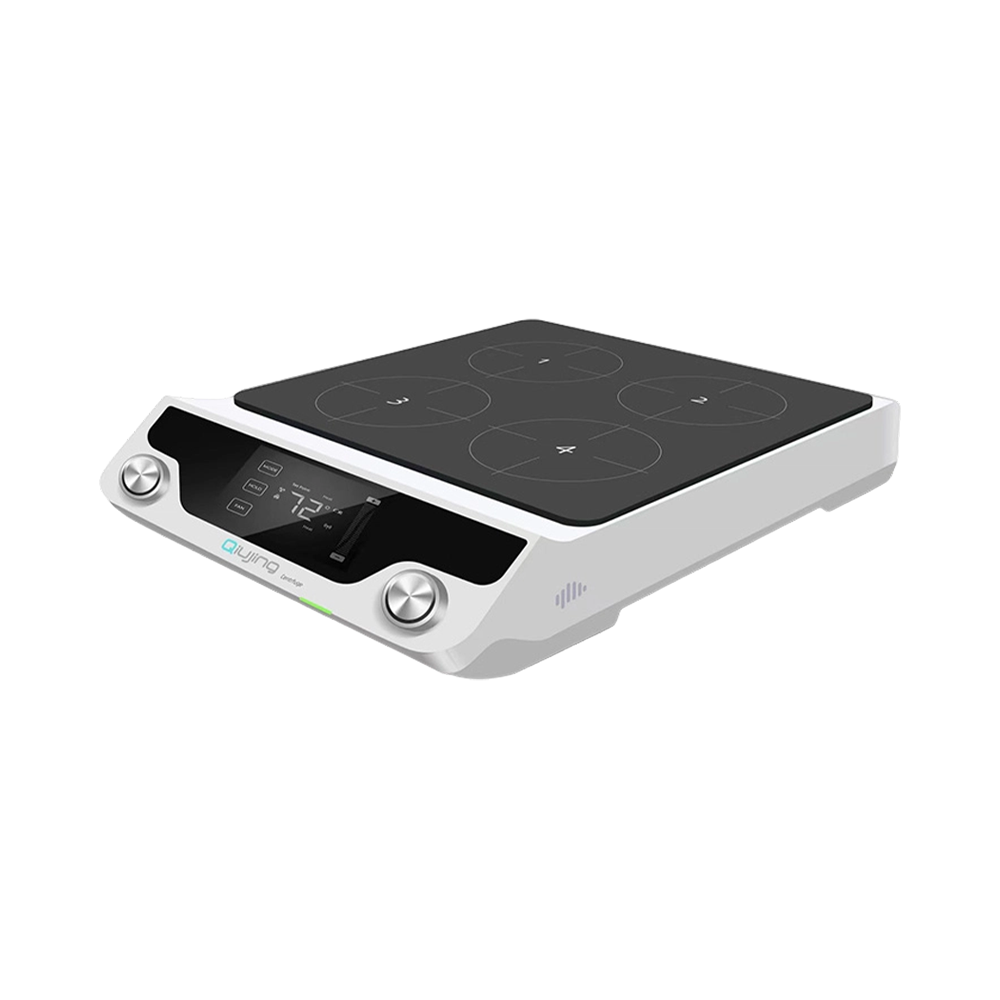

Qiujing Top Magic Series Four Channel Heated/Unheated Magnetic Stirrer TOP4/TOP4H

LCD display, adjustable speed, time and other parameters, intuitive and clear;The rotor adopts strong magnetic and high temperature resistant magnetic steel to ensure that the instrument has enough attraction and torque to prevent the rotor from jumping when the stirring rotor runs;CNC machining aluminum disk, uniform temperature, fast heating speed, anodized surface, corrosion resistance, wear resistance;

  • Qiujing Top Magic Series Four Channel Heated/Unheated Magnetic Stirrer TOP4/TOP4H
  • Qiujing Top Magic Series Four Channel Heated/Unheated Magnetic Stirrer TOP4/TOP4H
  • Qiujing Top Magic Series Four Channel Heated/Unheated Magnetic Stirrer TOP4/TOP4H
Item Specification
Power Supply Voltage AC100‑240V
Power Supply 70W
Display Mode LCD
Rotational Speed 200‑1800 rpm
Speed Control Range ±10 rpm
Effective Centrifugation Time 1 min‑12 h
Maximum Mixing Volume 1 L×4
Working Plate Material Corrosion Resistant AG Glass
Working Plate Dimension 215*235 mm
Motor Type Brushless DC Motor
Time Control Mode Left Knob Control
Speed Control Mode Right Knob Control

Item Specification
Power Supply Voltage AC100‑240V
Total Power 300W
Display Mode LCD
Speed Range 200‑1800 rpm
Speed Control Accuracy ±10 rpm
Effective Mixing Time 1 min‑12 h
Heating Temperature RT‑105℃
Temperature Control Built‑in Temperature Sensing Wire
Maximum Mixing Volume 1 L×4
Working Plate Material Anodized Aluminum Plate
Working Plate Size 215*235 mm
Motor Type Brushless DC Motor
Time Control Mode Left Knob Control
Speed Control Mode Right Knob Control
